PS176Q Addition and Renovation

PS176Q Addition and Renovation

Renovation of an existing 100,000 square foot school and the construction of a 45,000 square foot addition.



Addition Completion: 2016
Renovation Completion: 2017

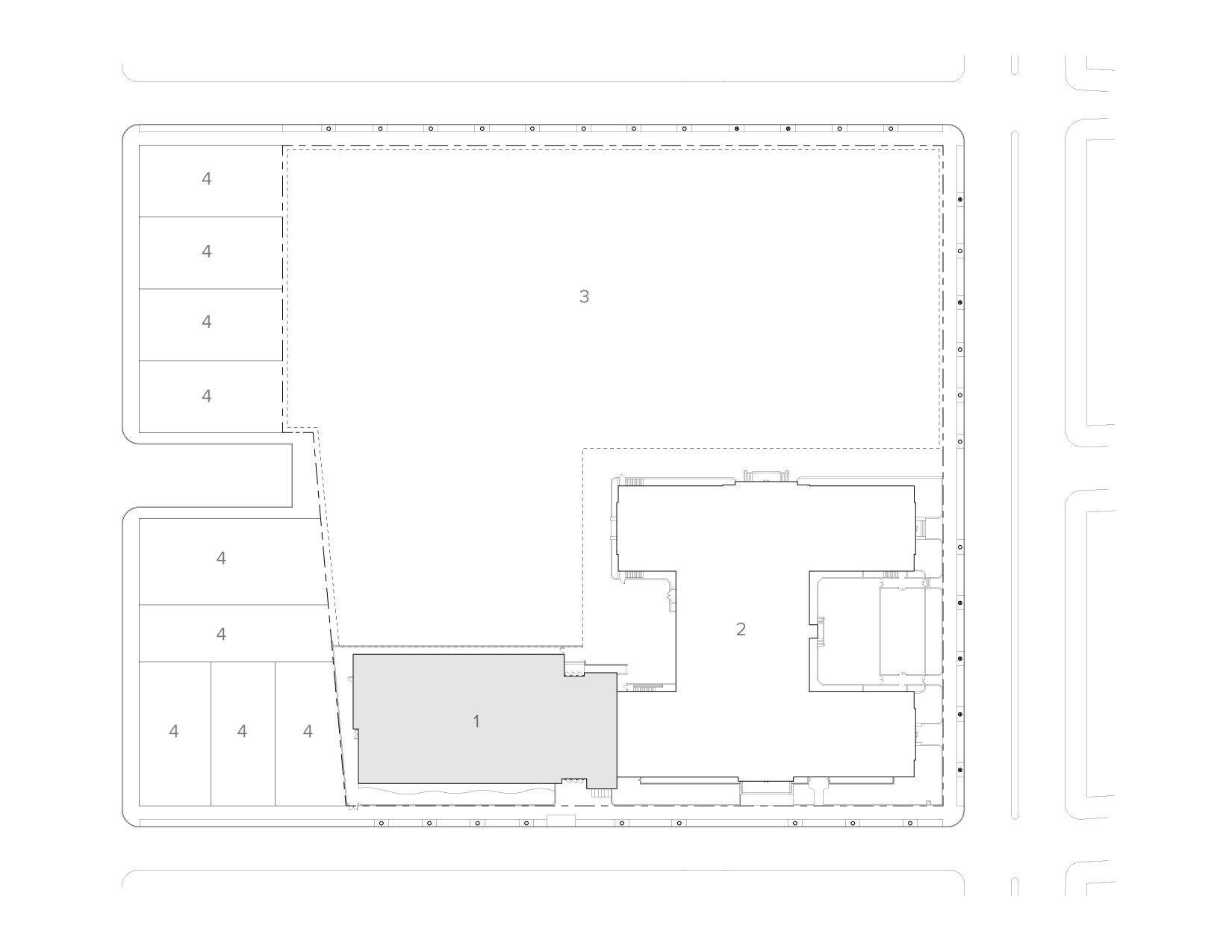

Site Plan

Site Plan

1   Building Addition
2   Existing Building
3   Jointly-Operated Playground
4   Single-Family Houses

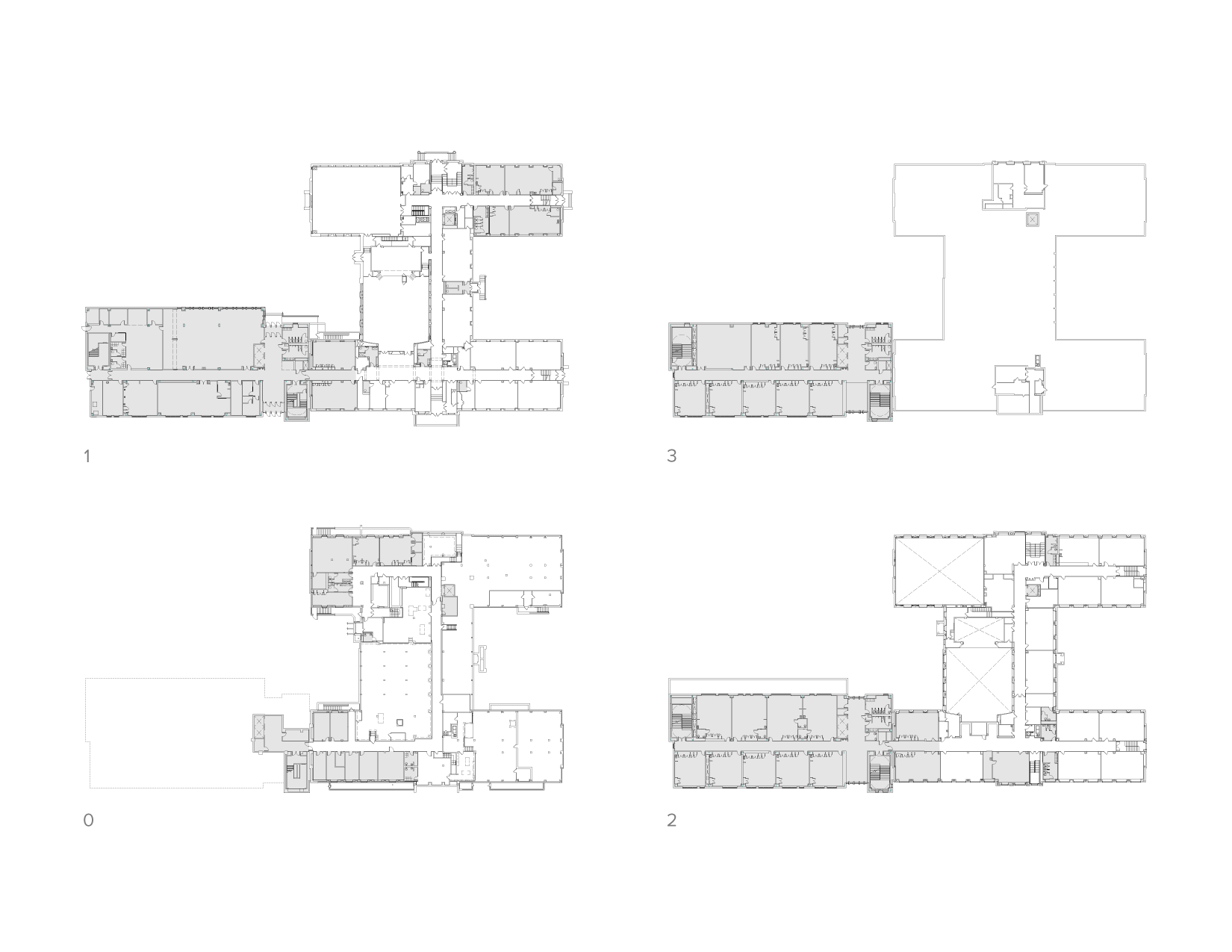

Floor Plans

Floor Plans

0   Cellar
1   First Floor
2   Second Floor
3   Third Floor

Trees

Trees

Entrance

Entrance

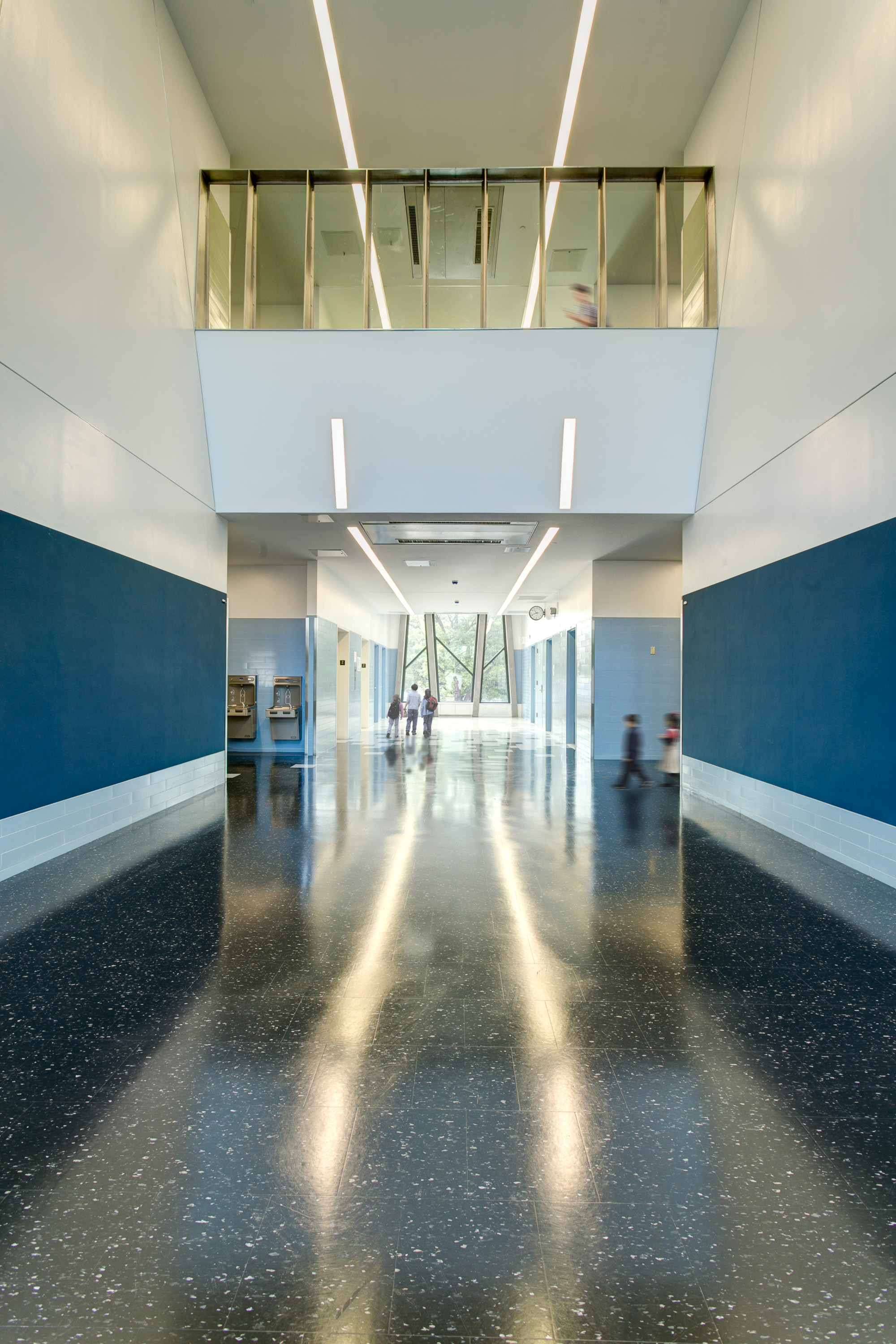

Kids Gallery

Kids Gallery

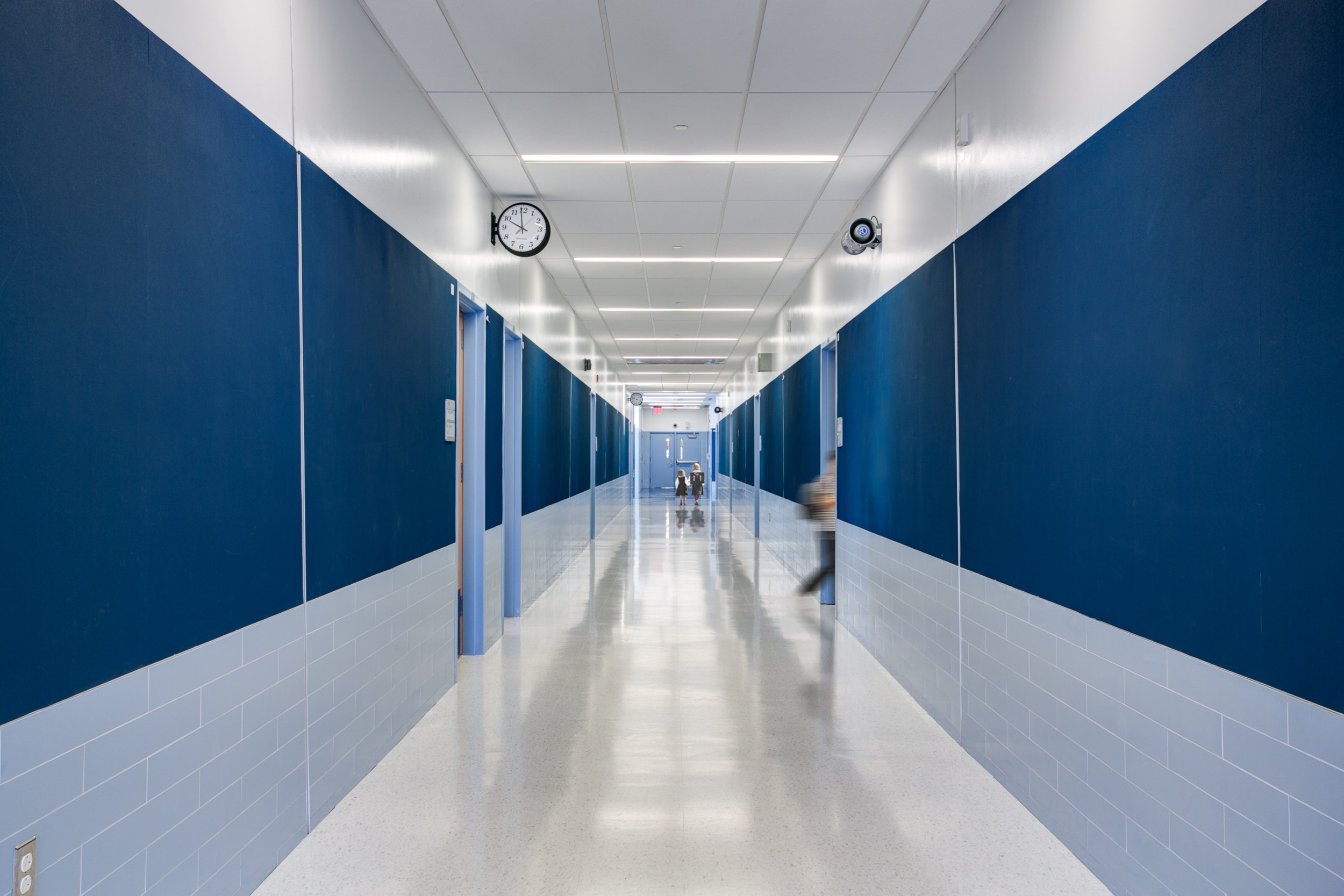

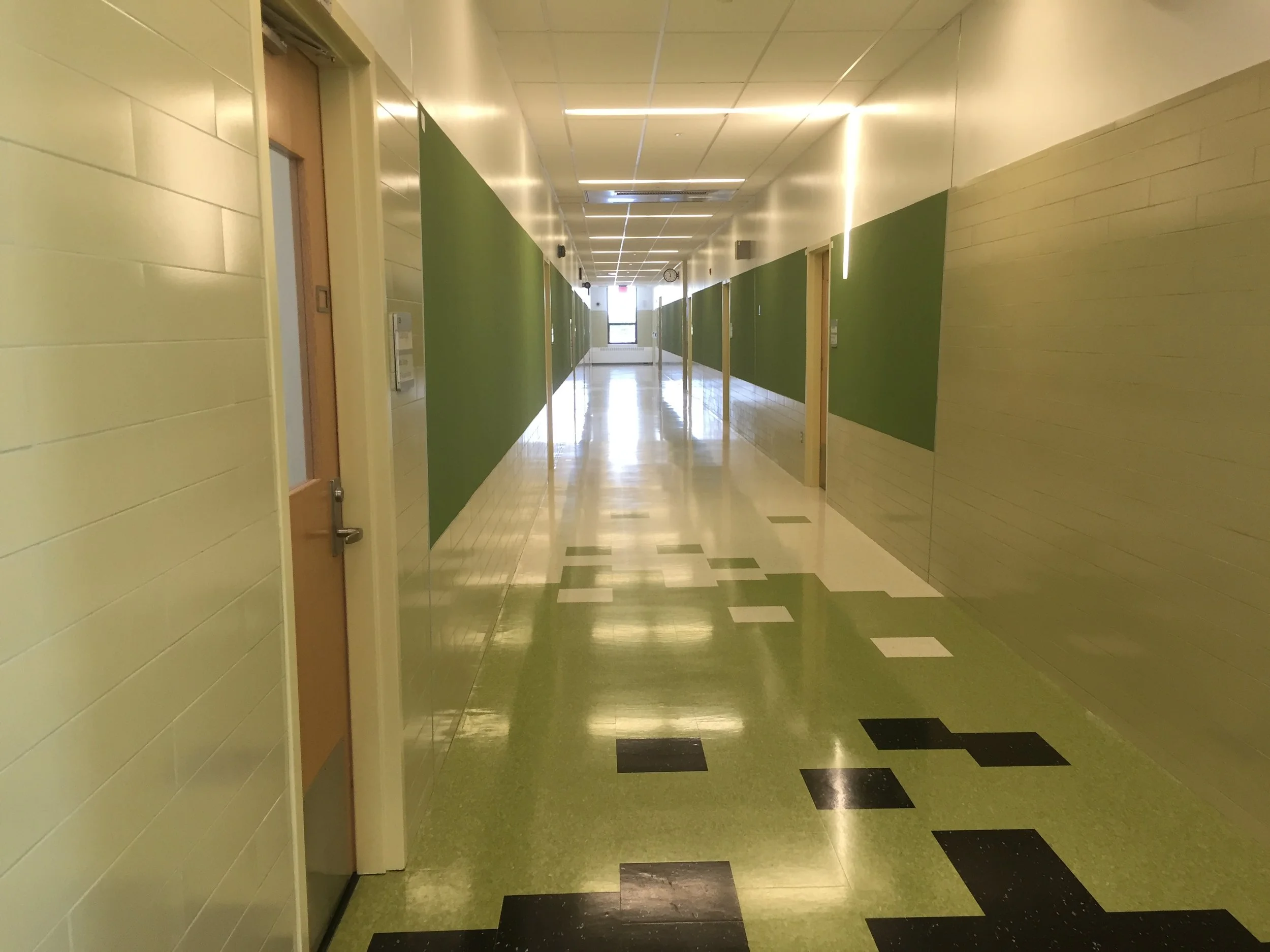

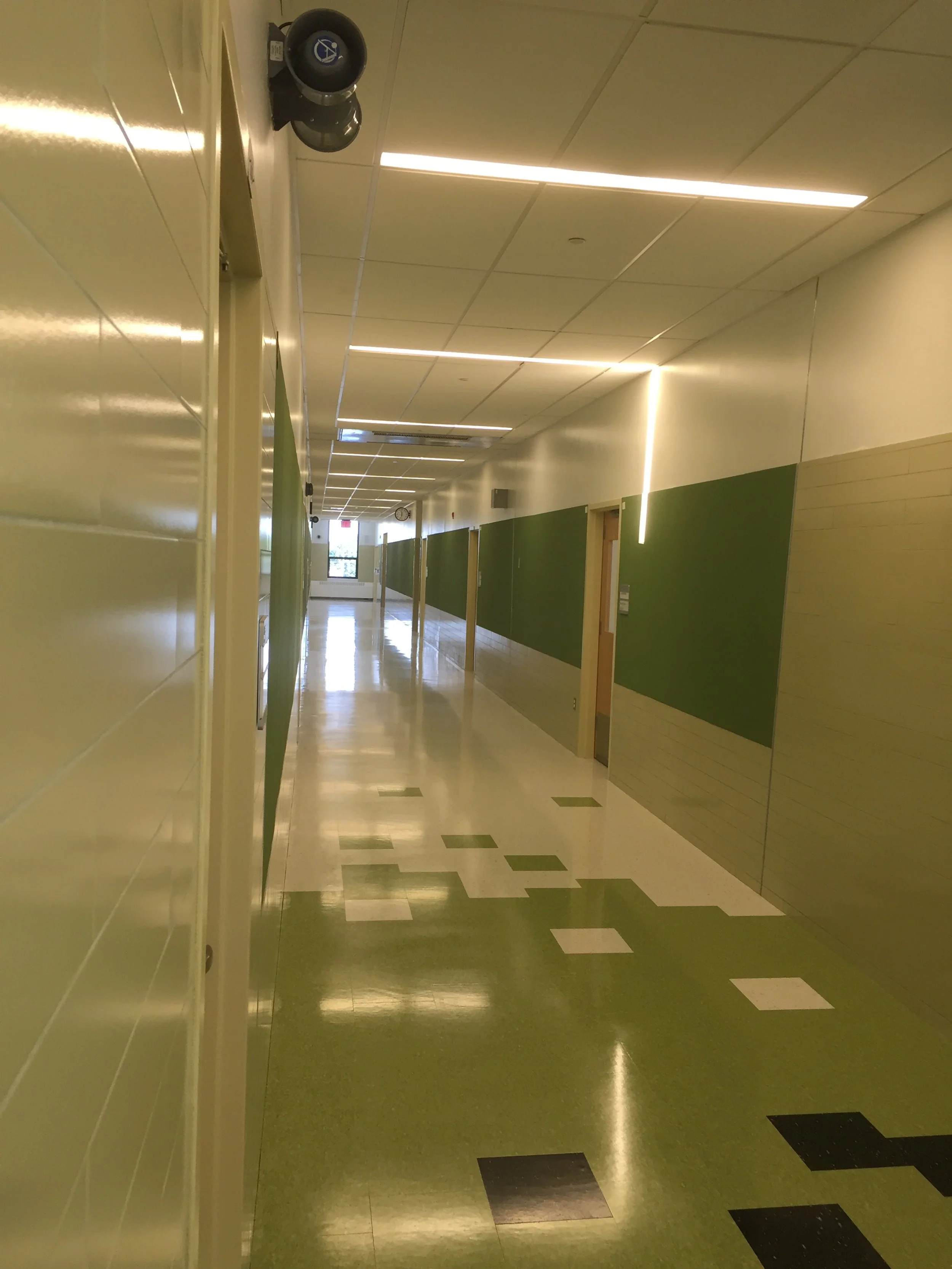

Corridor

Corridor

Elevator Vestibule

Elevator Vestibule

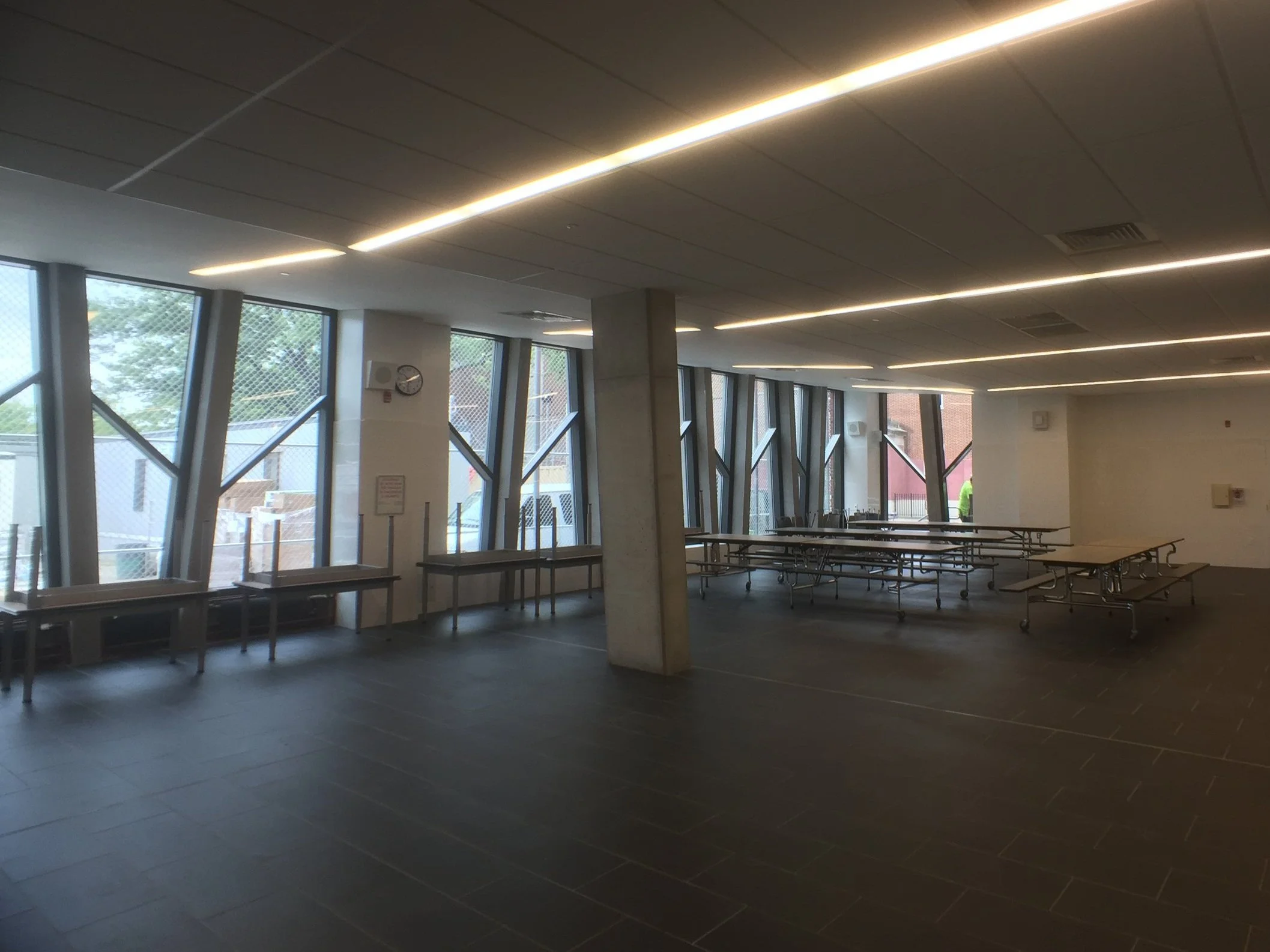

Common Space

Common Space

Classroom

Classroom

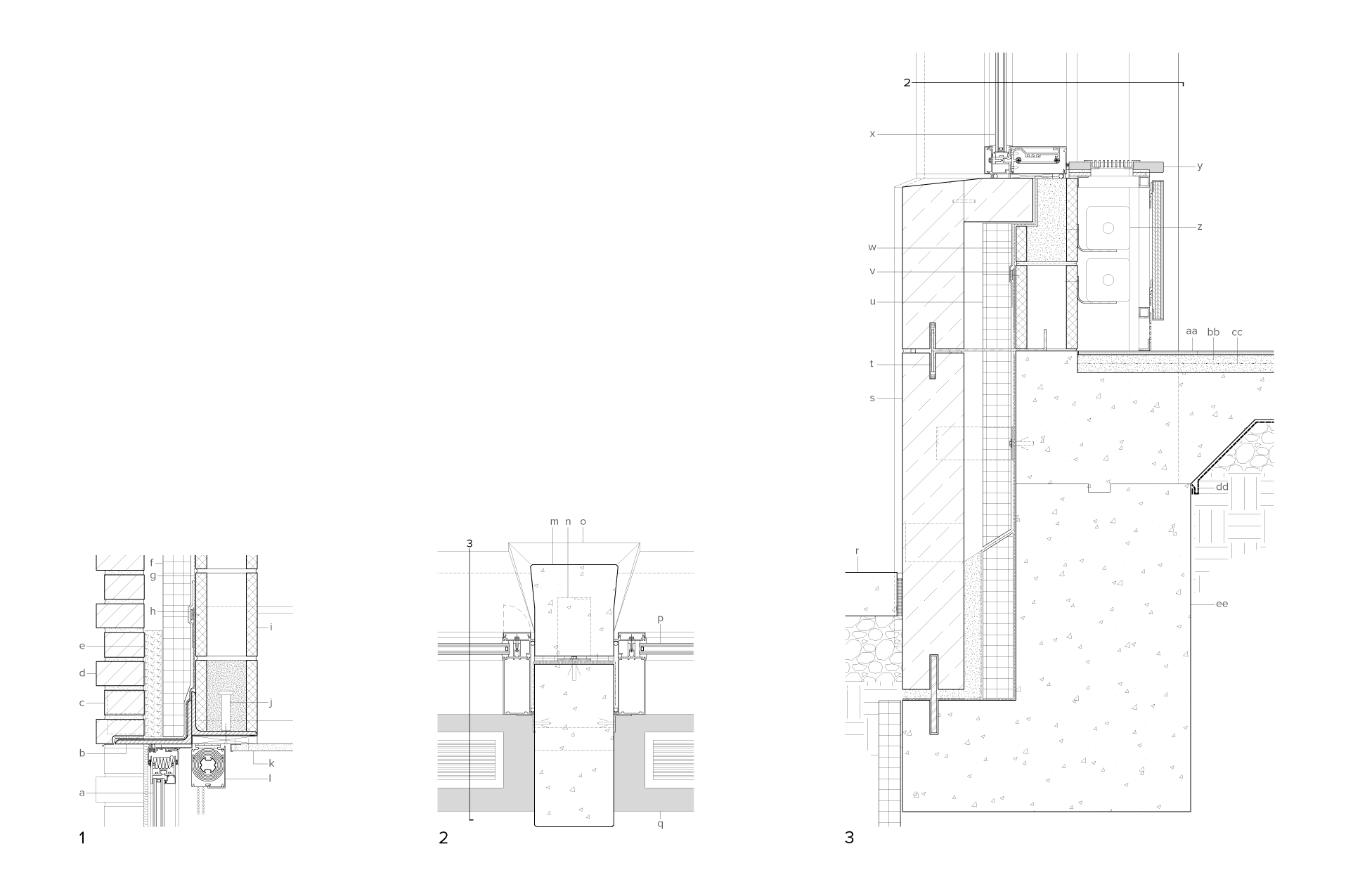

Exterior Details

Exterior Details

1   Window Head Detail
2   Architectural Precast Post Detail
3   Granite Base Detail

a   Glazing assembly
     1 1/8” thick laminated insulated low-e glass unit
     aluminum hopper type projected window
b   Steel relieving angle
     galvanized by the zinc metalizing method
     polyamide epoxy primed
     acrylic aliphatic polyurethane finish
c   3 5/8“ wire-cut face brick
d   4 3/8” projected brick
e   10” mortar net
f   3” extruded polystyrene insulation
g   60-mil continuous fluid-applied synthetic polymer air/vapor barrier
h   Continuous counterflashing assembly
     copper/fiberglass fabric flashing
     plastic flashing termination bar
     self-adhering counterflashing strip
i   5 5/8” lightweight concrete masonry unit
j   3/4” shear stud
k   Gypsum board ceiling soffit
l   Chain and clutch operated window shade
m   Angled architectural precast concrete post assembly
n   1/4“ stainless steel stone anchor
o   5 5/8” granite base
p   Glazing assembly
     1 1/8” thick laminated insulated low-e glass unit
     aluminum curtain wall window
q   Solid acrylic resin radiator enclosure
r   Exterior concrete pavement
s   5 5/8” granite base
t  1/4“ stainless steel stone anchor
u   3” extruded polystyrene insulation
v   Continuous counterflashing assembly
     copper/fiberglass fabric flashing
     plastic flashing termination bar
     self-adhering counterflashing strip
w   60-mil continuous fluid-applied synthetic polymer air/vapor barrier
x  Glazing assembly
     1 1/8” thick laminated insulated low-e glass unit
     aluminum curtain wall window
y   Solid acrylic resin radiator enclosure
z   Fin tube radiator
aa  10mm unglazed porcelain paver tile
bb   1 5/8” thick-setting bed
cc   16ga galvanized steel welded wire mesh
dd   60-mil continuous fluid applied gas vapor barrier
ee   Concrete grade beam

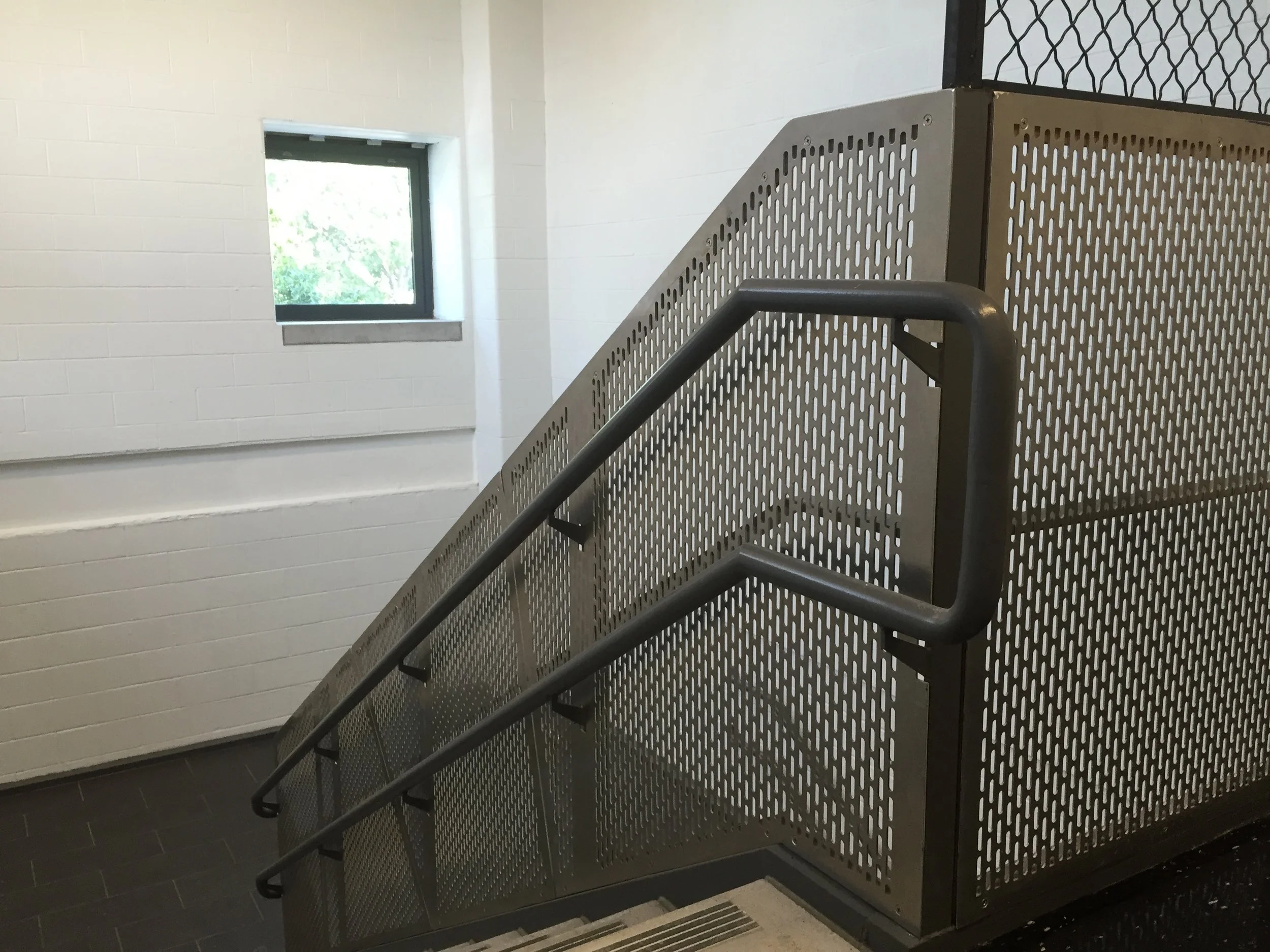

Stair

Stair

1   Perforated Aluminum
2   Enlarged Detail

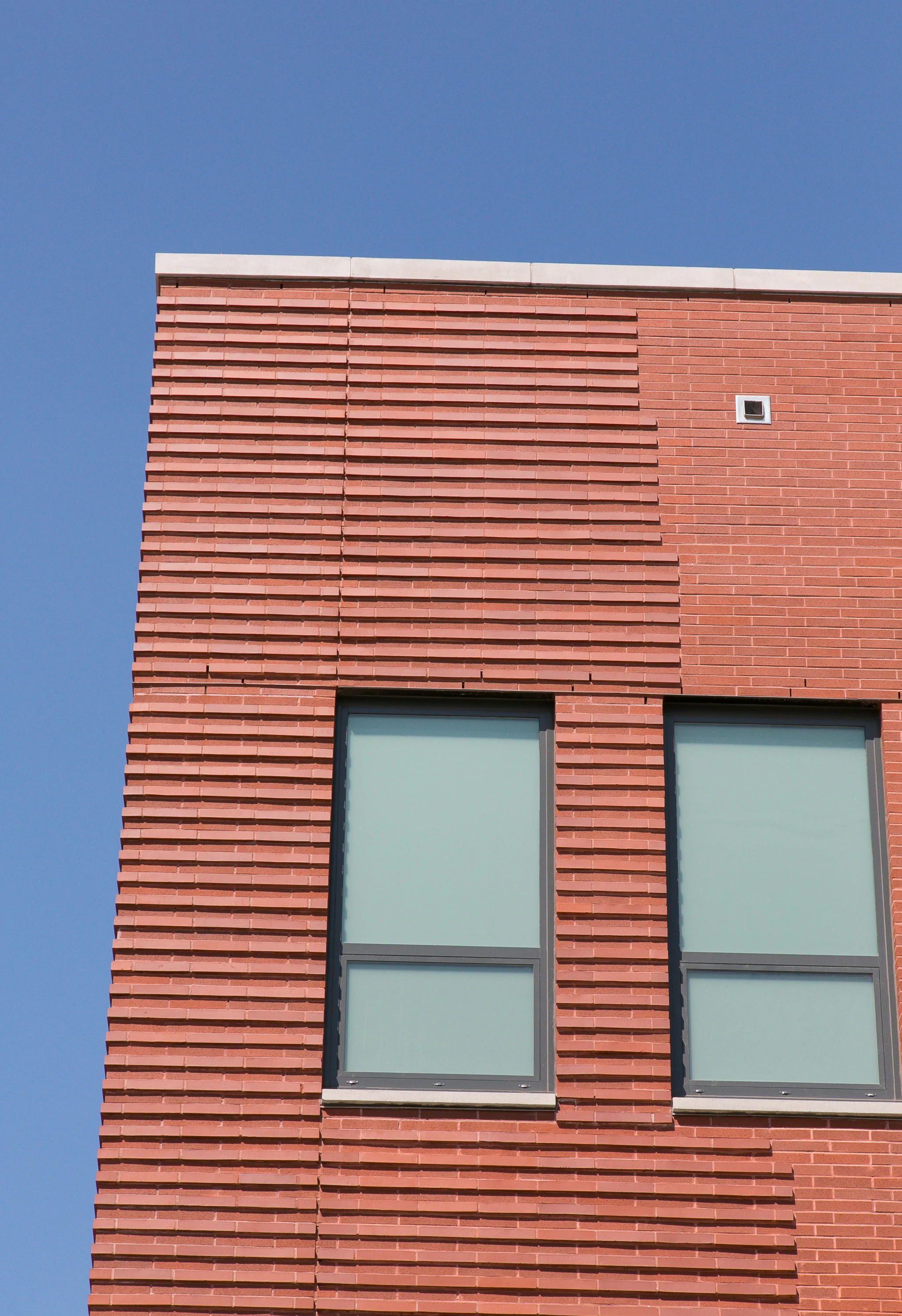

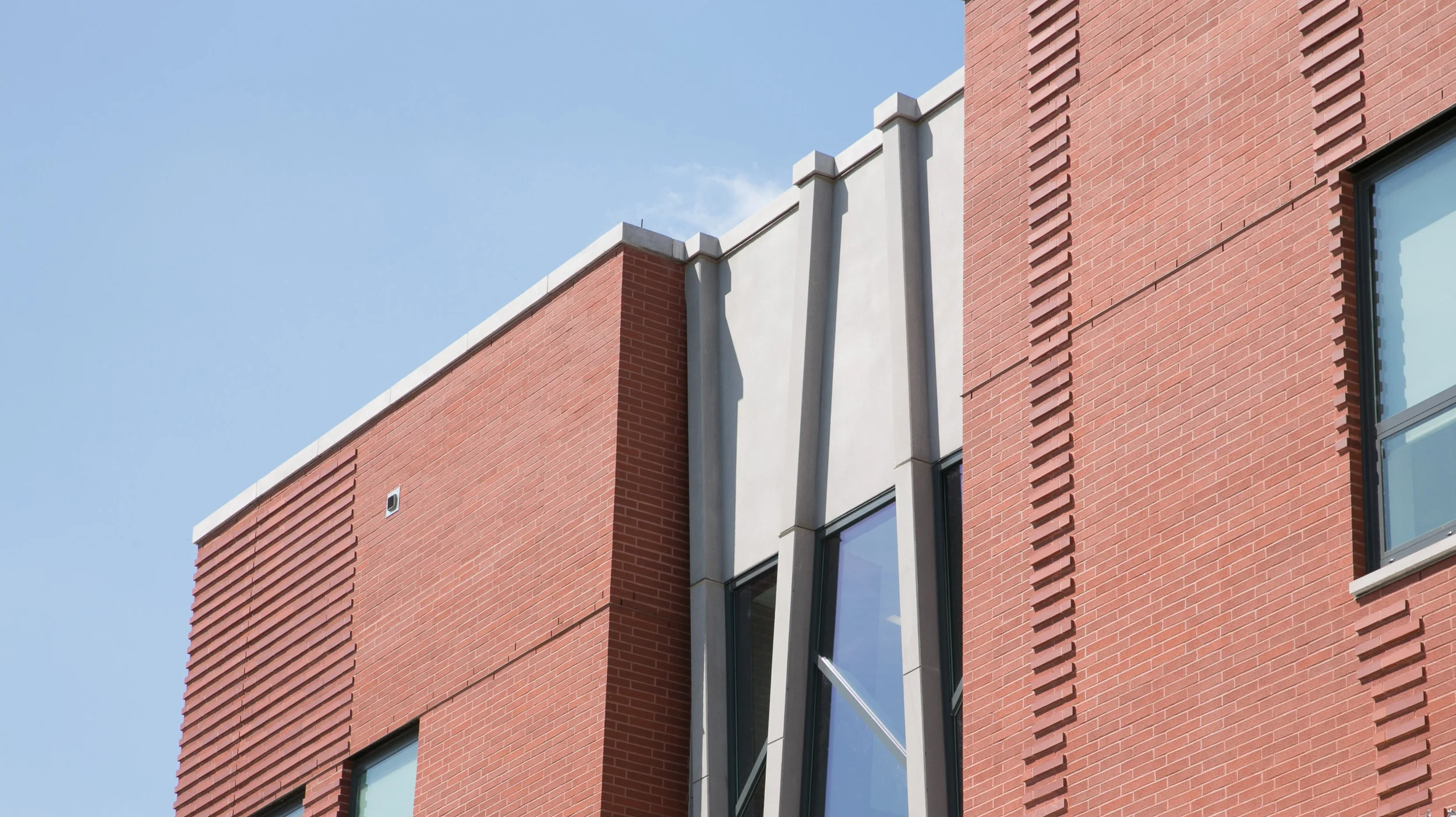

Detail

Detail

Detail

Detail

Detail

Detail
